How Many Subpanels Are Allowed On One Service

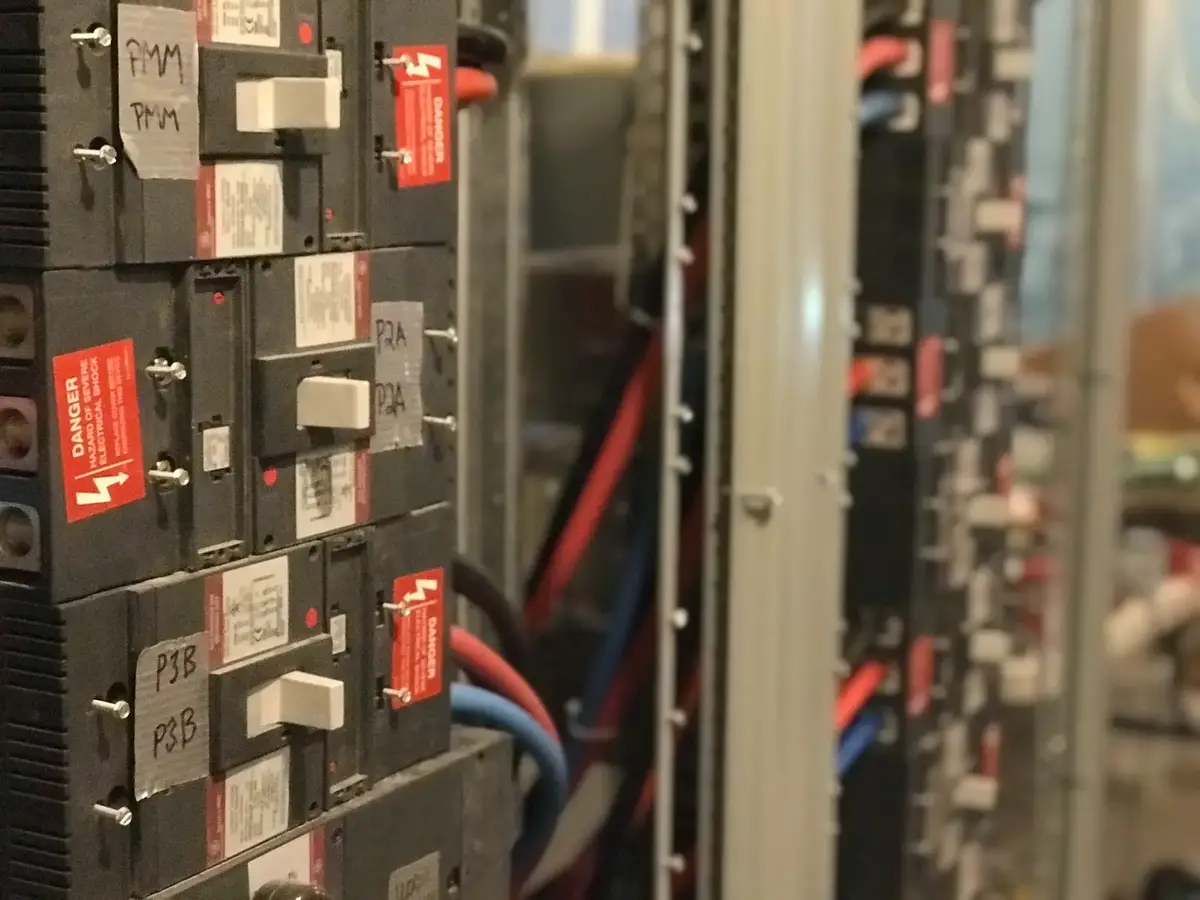

Image by Troy Bridges via Unsplash

Safety should be the primary business organisation when working on anything with electricity within the home. It is recommended to always get a professional to do whatever work with electricity. On that note, all buildings are fitted with at least one electrical panel, which receives electricity from the utility company and distributes electric electric current to various rooms within the building. Subpanels can run off the primary panel, allowing you to adjust current distribution, just tin you run a 100 ampere (amp) subpanel off a 100 amp main console?

You tin run a 100 amp subpanel off a 100 amp main panel because the total can exist up to twice the amperage of the box, meaning yous could run a subpanel of upwards to 200 amps. What's critical, though, is that the subpanel is safely and correctly connected to the chief console and that y'all don't overload the service panel.

In this article, nosotros're going to explore how electricity functions in your home, how much is required to power the appliances you use, and why you may need a subpanel. Nosotros'll expect at the part of main panels and subpanels and explain how they work together to provide your home with the power you need.

If you want to notice the best sub panels, click here.

How is Power Fed to Your Domicile?

Power originates from a generating station, which uses either current of air, coal, natural gas, or water to generate electricity. The power then travels through transformers that increment the voltage, allowing information technology to travel long distances forth the transmission lines that run throughout the country.

From there, power transfers to a substation, which lowers the voltage to permit it to travel forth smaller lines. These lines travel to your neighborhood, where it enters another transformer that further reduces the voltage, allowing occupants to use it safely in their homes.

Electricity then arrives at your dwelling either through a power line or an hole-and-corner conduit. A meter is usually mounted where the power enters the house, allowing the utility company to monitor usage. Nearly that meter is the master console, the primal distribution indicate for all the circuits that run throughout the house.

Image by maxmann via Pixabay

The Chief Panel

The main panel is as well known as the distribution board, breaker panel, or electrical panel. Each excursion, which powers every light or appliance inside the house, runs from this principal panel and back again.

The current begins at the principal console, travels to the apparatus along the circuit through a hot wire, and then returns to the panel along a neutral wire. Any pause in this process would result in a loss of current.

In improver to the hot and neutral wires, there is also a grounding wire that returns to the main circuit and acts to prevent electrical shocks past diverting any hot wires that may short-excursion (source)

Sometimes called the breaker box, near medium-sized homes are fitted with a 100-amp chief console. This amperage is sufficient to power a dwelling house smaller than 3000 square feet if it doesn't run air-conditioning or employ electric rut (source). Larger homes, and more than modernistic homes, are generally fitted with 150 or 200 amp main panels.

The location of the main panel is unremarkably inside a steel box with a door or panel, inside of which are the house's excursion breakers. You lot can switch these breakers on or off, and each billow controls an area in the house or a specific apparatus.

Ideally, you should have each breaker labeled and so that y'all know what expanse you are dealing with in the instance of something tripping a switch.

The breakers are usually arranged in two columns and are numbered from left to correct and top to lesser.

At the pinnacle of the main panel, or sometimes on 1 side, there volition likewise be the main circuit breaker that controls the whole panel. This main circuit breaker should likewise place the amperage capacity of the circuit which, in this case, should say 100 amps.

Circuits and Circuit Breakers

Each switch within your main console runs a specific circuit. Electrical circuits are designed to take a particular amount of electrical load. For instance, circuits that run to bedrooms and living rooms typically only power lights and plugs running minor appliances. These are usually on a 15-amp circuit.

Kitchens, bathrooms, and laundry rooms that are likely to run items requiring more power will typically run on a 20-amp excursion. Some major appliances volition even need a dedicated circuit only for themselves, peculiarly if they draw more than than half the excursion'south capacity.

Circuit breakers are switches that protect each excursion from damage, which tin can exist acquired by besides much electrical current or a short circuit.

Trying to run more than ability through a circuit than it's designed to concord is dangerous and can effect in electrical fires. Excursion breakers tin can notice the increased current and trip the ability to stop its menses.

Subpanels

Subpanels are secondary, smaller service panels, feeding off the main panel. They are typically fed from a circuit breaker on the master console, known as a feeder breaker. They are mostly just smaller versions of the chief panel and operate similarly.

The only principal departure between main panels and subpanels is that they don't have a circuit breaker switch to shut off the panel because the main panel controls them.

A subpanel is continued to the principal panel past a feeder cable, which is a thick three-wire cablevision, ii hot wires and a neutral, every bit well every bit a copper ground wire.

Purpose of subpanels

The decision to add subpanels is commonly because the primary panel has run out of space to install whatsoever more than circuits or to have an additional control point for a specific area, such as a domicile office or separate flat.

If the purpose is to add space to the main panel, the installer will usually place it alongside the main panel. If the goal is to serve a specific area, then it will likely be located in that infinite. Subpanels typically have betwixt 4 and 12 slots to add circuit breakers for additional circuits.

When sending power to a remote location, a subpanel can reduce costs, every bit information technology only requires a single circuit from the chief panel that tin so exist fed out at the new location.

Power Capacity

When installing a subpanel, the central area of concern will be power capacity. The subpanel needs to exist able to adequately supply the circuits that are being installed with power, and the principal panel must accept sufficient unused capacity to supply the subpanel.

Depending on what you are trying to ability with the subpanel, you might need to upgrade your capacity from a 100A main panel. However, it is essential to calculate how many amps you are using between all the breakers on the existing panel to conclude how much power a subpanel would be able to utilize.

Certain systems or appliances use considerable amounts of electricity. Heating and cooling systems are the biggest culprits hither, with HVAC systems estimated to comprise 46% of the energy consumption in United states of america homes (source).

Next in line are water heaters then large appliances such equally refrigerators, washers, dryers, electrical ovens, and dishwashers. Together, these items business relationship for more a quarter of almost household energy bills.

Lighting and televisions or other media utilise surprisingly little power, making upwardly less than fifteen% of the average spend.

Computing Amps

To summate amps, 1 needs to divide watts by voltage. Voltage is the pressure to move an electrical accuse. Most household current is pushed at 120 volts, although some larger appliances will require 240 volts.

Watts refers to the unit of measurement for electrical ability, or how much energy is released. Amps measures how much electrical electric current the voltage pushes per 2nd.

A excursion with a xv-amp chapters will, therefore, trip if y'all exceed that load. If y'all were, for case, sitting in a room with the lights on and watching Tv, that would only use a few amps from the circuit. If you then plugged in an 800-watt coffee maker, that would swell the load by a further half dozen.6 amps but still exist manageable.

But, if you then add a 1200-watt space heater to the same circuit, it would trip because the extra ten amps required would be too much. The excess load creates heat, which starts to bend the metal pieces inside the excursion breaker, causing it to trip and shut down the excursion.

The curt-term solution here would be to plug the infinite heater into a different circuit. In the long-term, if the space heater is used regularly, it would exist ameliorate to install it on its own dedicated excursion.

Image past rgaudet17 via Pixabay

Consult An Electrician

An article such equally this cannot cover all eventualities and codes that employ in all countries and all local municipalities.

For this reason, as well every bit for the safety of you, your family unit, and your dwelling, information technology is best to consult with a local electrician before any type of electric work.

When electricity is concerned, a little bit of cognition can be mortiferous, and it is not worth taking the gamble simply to relieve a little money.

Final Thoughts

Whatsoever type of electric work should never exist considered a DIY chore with little bones knowledge of electrical piece of work. Before installing a subpanel, it is essential to consult with a professional person to ensure that it will not overload your arrangement. An inspector will need to corroborate the subpanel, the feeder breaker, and the wires used to connect it.

Subpanels can be an easy solution to increasing the number of circuits you have at your disposal inside your dwelling house. They don't require any major building work and are easy to install. Still, it is of import to correctly calculate the amount of ability you will require at any one time to ensure that the system will be able to cope adequately.
